Ultra-Widescreen Rugged Displays

Today’s advancing machines require high-performance speed and horsepower to help deliver a superior operator experience. Our 12.3" and 15" upgraded displays are built for rugged applications and are designed to perform in all climate and lighting conditions. They are highly configurable with inputs, outputs, PCAP touchscreens, USB, video inputs, Ethernet, and wireless communication and offer programming options such as Crank, Qt, or other through the use of Yocto containers. Complete the form on this page or contact our technical sales team to discuss your project.

  • IP67 sealed

  • Ultra-wide viewing angles

  • Shock and vibration resistant

  • Sunlight readable

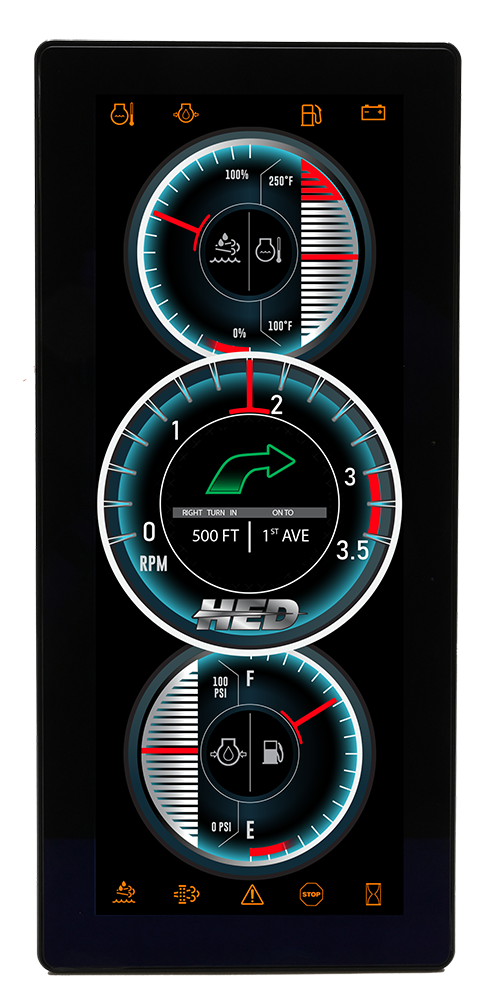

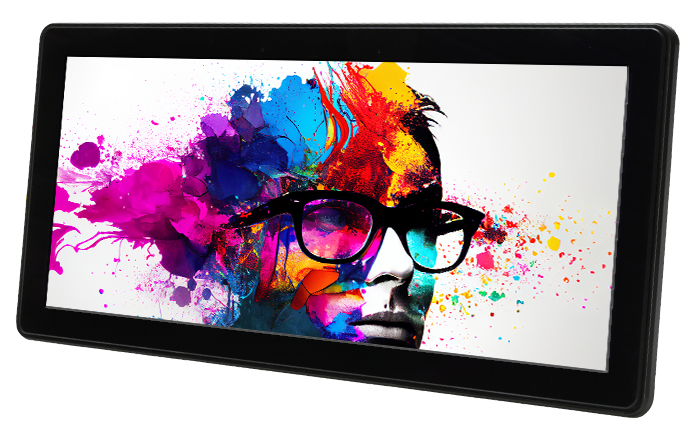

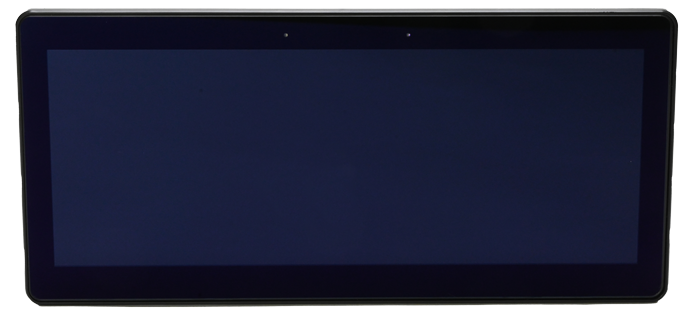

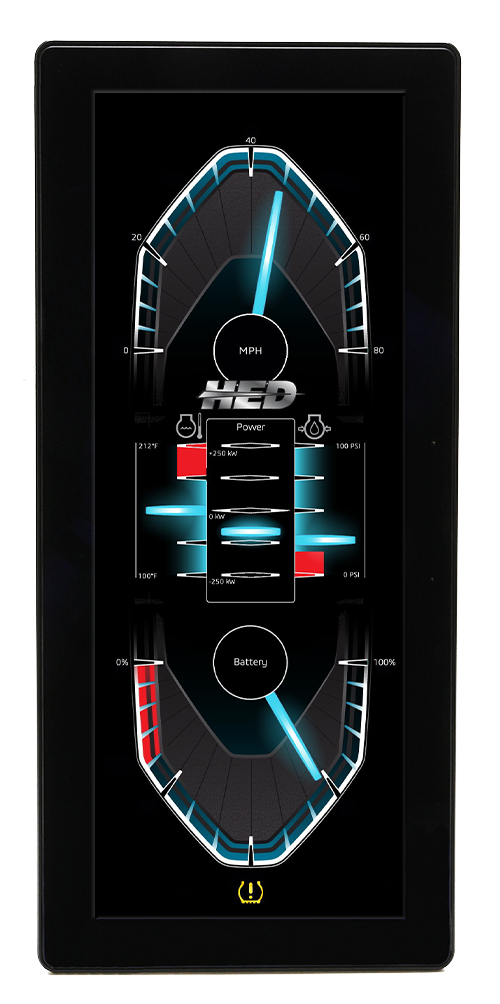

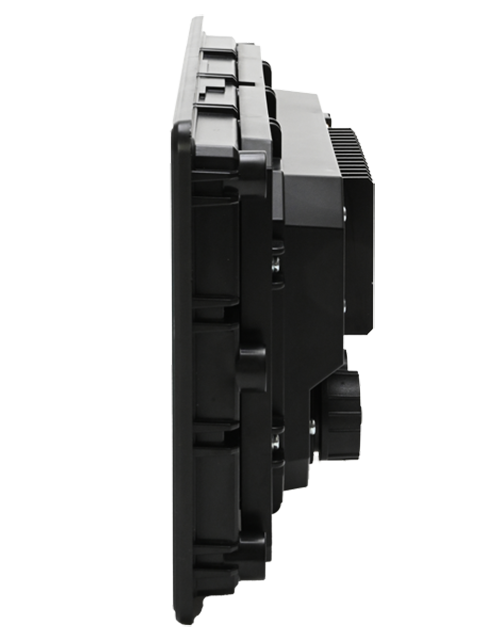

  • Available in a 12.3" (CL-715) or a 15" (CL-716)

High-Performance

Our new displays provide consistency and speed for programming and digital video streaming. Superior performance is delivered through standard features like NVMe drive, NPU, and the horsepower of the newest quad iMX processor.

  • i.MX8M Plus Quad Core Processor running at 1.6 GHz with advanced graphics for AI and Edge computing
  • 3D Graphics: Vivante GC7000UL high performance graphics processing unit
  • 2D Graphics: Vivante GC520L high performance 2D raster graphics core
  • NPU up to 2.3 TOPS - process and perform trillions of operations per second


Modern Look + High Tech

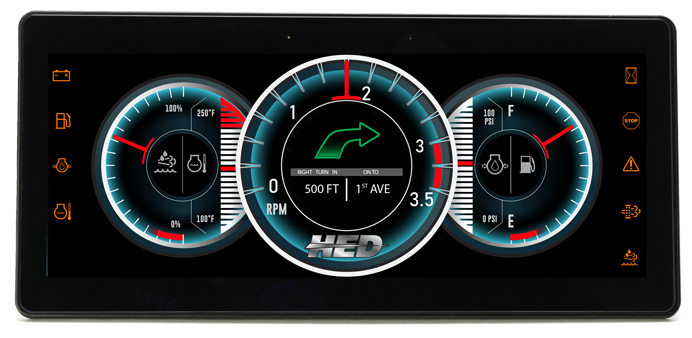

Multi-video display capability enhances safe vehicle operation and provides a superior operator interface with PCAP touchscreen for navigation and control with gloves and in the rain.

  • Best-in-class 1920x720 resolution
  • Full 720P camera support without compression
  • 8:3 aspect ratio
  • 24-bit image, 16.7 million color values
  • 1000:1 contrast ratio
  • 1,000+ nit brightness
  • Ultra-wide, 85 degree viewing angles

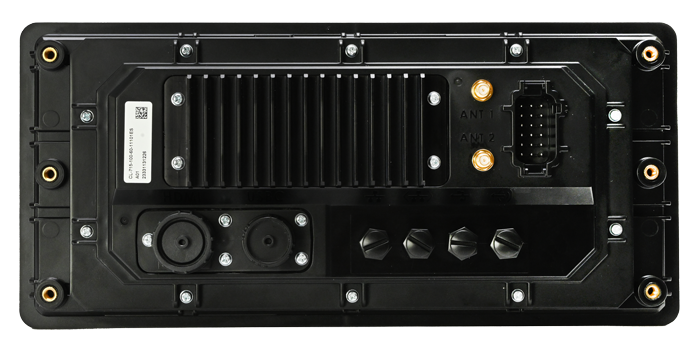

Multiple Connectivity Options

Stay connected with Automotive Ethernet ensuring consistency and speed for programming and digital video streaming and optional Wi-Fi.

  • 4x CAN-FD ports
  • 2x USB, 1x USB-C 3.0 (sealable), 1x USB-A 2.0 (M12)
  • 2x Gigabit Ethernet ports with auto-negotiate
  • Wi-Fi 802.11a/b/g/n/ac, dual-band 2.4/5 GHz (optional)
  • Sealable HDMI 1x (optional)
