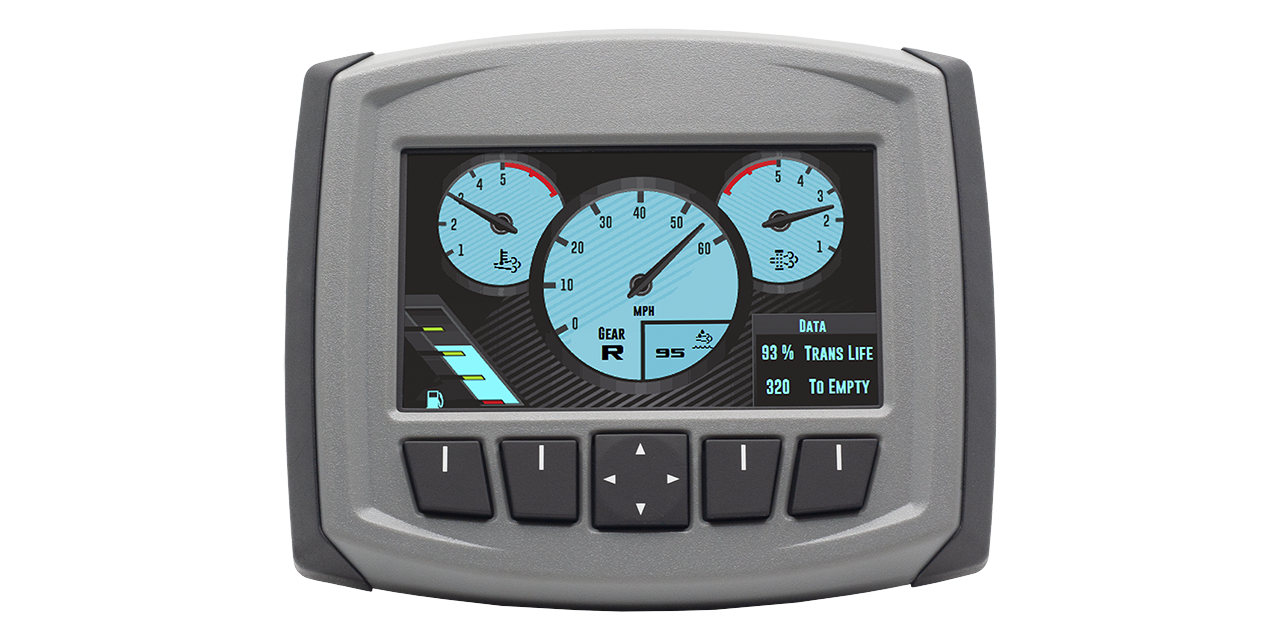

4.3" Programmable Display | CL-709

Our compact display is made for tight spaces inside or outside the cab at only 4.3", yet allows operators ample viewing of graphics including gauges and data.

Programmable - With HED Orchestra software tools
Sealed enclosure - External mounting (IP67*)
Mounting - Rear (no visible mounting holes)
Sunlight readable -  4.3" TFT color LCD display
Pixel format - 480x272
Backlight - LED with 500 nit brightness
Microprocessor - PowerPC microcontroller
Memory - 1MB FLASH  / 48KB RAM
Real Time Clock - Internal Battery (15 year life - typical)
CAN ports - Qty: 2
Inputs and outputs - 4 Outputs and up to 9 inputs

*Available with addition of rubber covers

Specifications

4.3" Display Family CL-709-100
Brightness Nits 500
Inputs Up to 9
Outputs 4
Orchestra Programming Yes
Crank Storyboard No
