12.3" and 15" Ultra Widescreen CAN Displays | CL-715 and CL-716

Designed for rugged applications, HED’s newest lineup of displays are highly configurable with inputs, outputs, PCAP touchscreens, USB, video inputs, Ethernet, and wireless communication and offer programming options such as Crank, Qt, or other through the use of Yocto containers.

Contact our sales team to learn more >

Our new displays provide consistency and speed for programming and digital video streaming. Superior performance is delivered through standard features like NVMe drive, NPU, and the horsepower of the newest quad iMX processor.

  • i.MX8M Plus Quad Core Processor running at 1.6 GHz with advanced graphics for AI and Edge computing
  • 3D Graphics: Vivante GC7000UL high performance graphics processing unit
  • 2D Graphics: Vivante GC520L high performance 2D raster graphics core
  • NPU up to 2.3 TOPS - process and perform trillions of operations per second

Modern Look and High-Tech
Multi-video display capability enhances safe vehicle operation and provides a superior operator interface with PCAP touchscreen for navigation and control with gloves and in the rain.

  • Best-in-Class 1920x720 resolution
  • Full 720P camera support without compression
  • 8:3 aspect ratio
  • 24-bit image, 16.7 million color values
  • 1000:1 contrast ratio
  • 1,000+ nit brightness
  • Ultra-wide, 85 degree viewing angles

Multiple Connectivity Options
Stay connected with Automotive Ethernet ensuring consistency and speed for programming and digital video streaming and optional Wi-Fi + Bluetooth.

  • 4x CAN-FD ports
  • 2x USB, 1x USB-C 3.0 (sealable), 1x USB-A 2.0 (M12)
  • 2x Gigabit Ethernet ports with auto-negotiate
  • Wi-Fi 802.11a/b/g/n/ac, dual-band 2.4/5 GHz (optional)
  • Bluetooth 5.0 (optional)
  • Sealable HDMI 1x (optional)

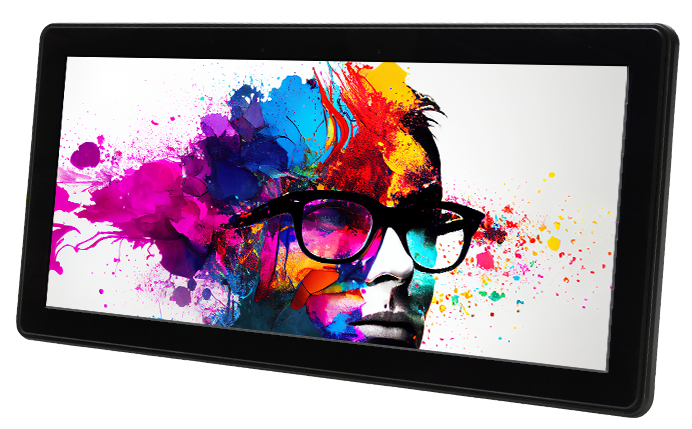

HED 715 CAN bus display


HED 716 CAN bus display


Development Tools

Build your own operator interface experiences using our programming tools.
