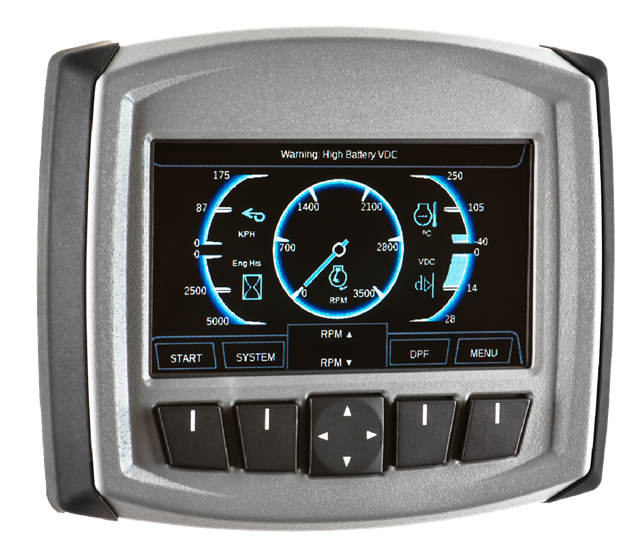

4.3" Programmable Engine Display | CL-709

Our 4.3" display is ideal for engine monitoring and control applications.  The bright, sunlight readable LCD displays multiple forms of data simultaneously.  Display can be mounted in or outside operator cab.  Ability to survive high shock and vibration conditions in on and off-highway vehicles.

Programmable - With HED Orchestra software tools
Sealed enclosure - External mounting (IP67*)
Mounting - Rear (no visible mounting holes)
Sunlight readable -  4.3" TFT color LCD display
Pixel format - 480x272
Backlight - LED with 500 nit brightness
Microprocessor - PowerPC microcontroller
Memory - 1MB FLASH  / 48KB RAM
Real Time Clock - Internal Battery (15 year life - typical)
CAN ports - Qty: 2
Inputs and outputs - 4 Outputs and up to 9 inputs

*Available with addition of rubber covers

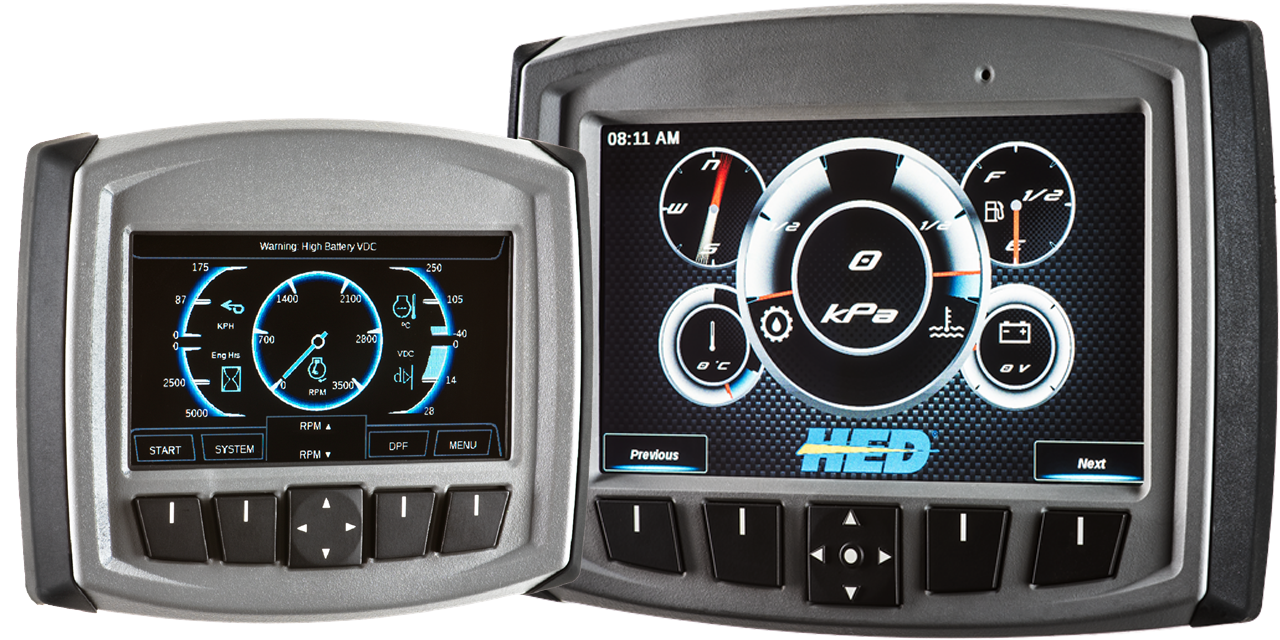

4.3" Engine Display Family CL-709-100-10-HED-05
Inputs 1
Outputs 1
5VDC Sensor Supply 0
Orchestra Programmable  No
Crank Storyboard  Yes
Qt Widgets Contact Your HED Salesperson


Development Tools

Build your own Telematics, controller, display or keypad solutions with our tools or open source.
