Telematics Modules

Our CANect® Telematics and smart datalogger modules provide all the benefits for your on and off-highway application needs:

Features





Specifications

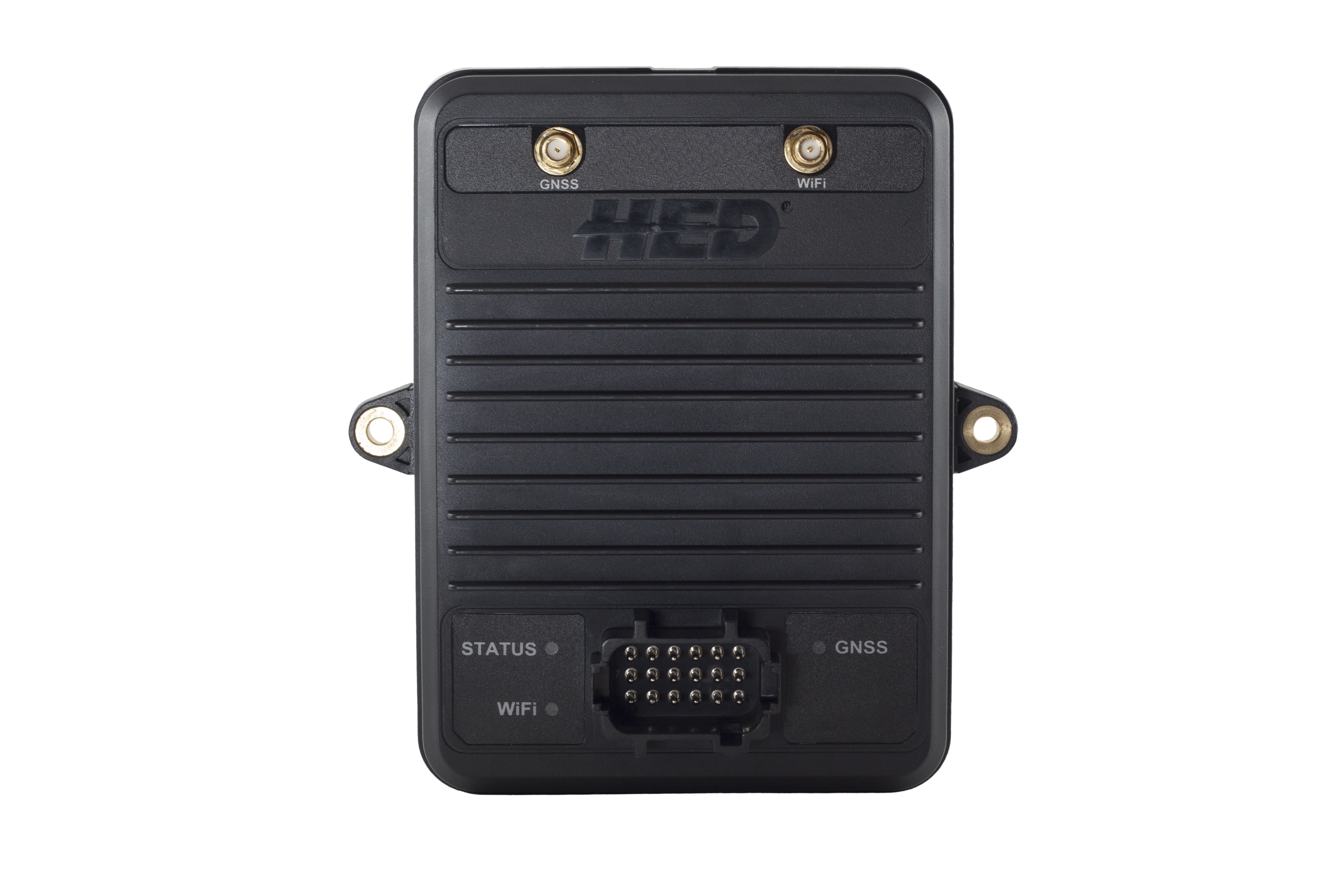

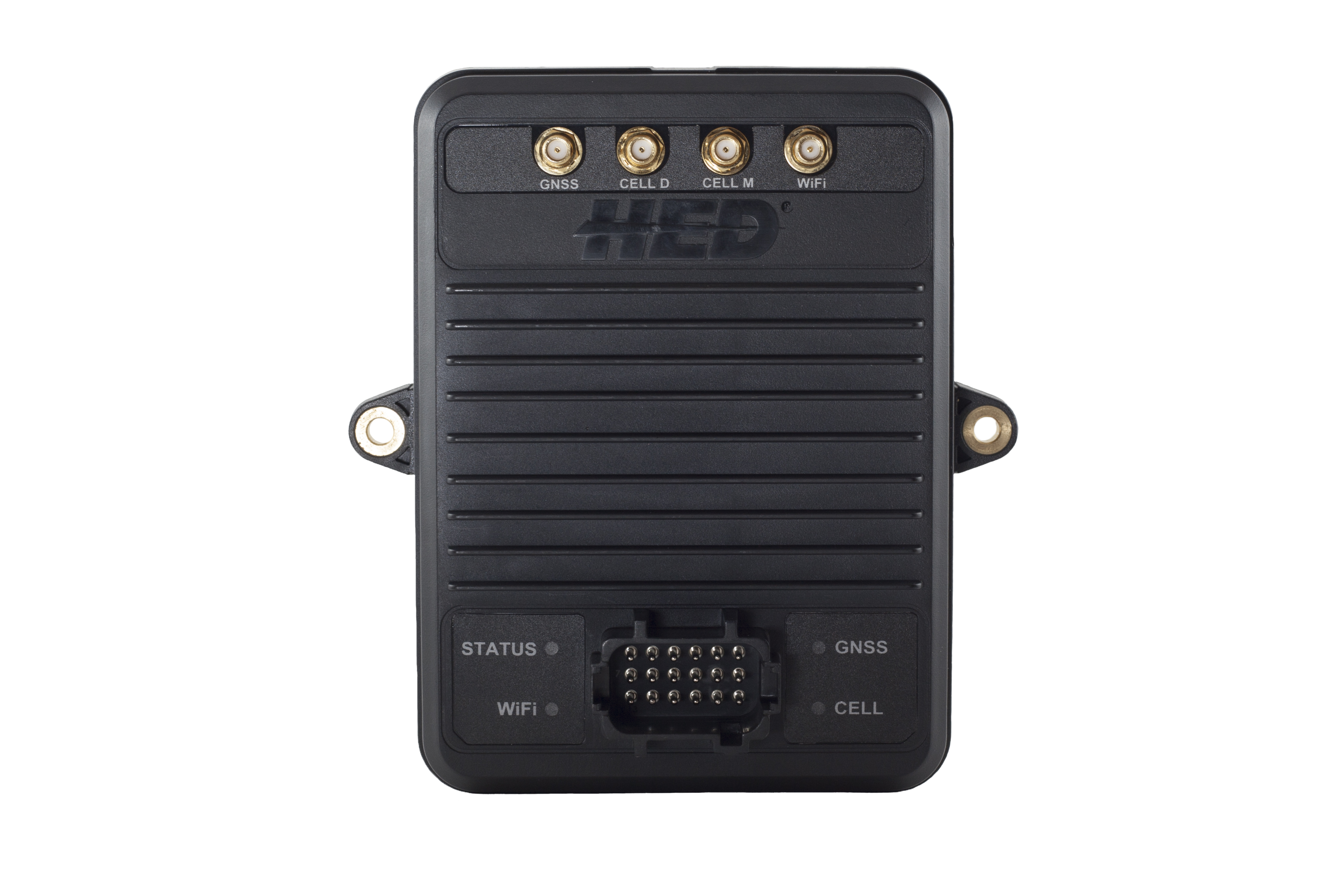

Family Part Number CL-T05 CL-T16 CL-T17
Development Environment Linux SDK
Processor i.MX6UL (696 MHz)
RAM/Flash 128MB DDR3 RAM | 4GB std. eMMC Flash
CAN Buses x2-ISO
USB 2.0 Host/Client
Ethernet 10/100 BaseT
GPS GPS GLONASS
Real-Time Clock Battery Included
Accelerometer 2/4/8G
Wi-fi Concurrent 802.11 b/g/n n/a Concurrent 802.11 b/g/n
Cellular n/a 2G/3G GSM | 4G LTE 2G/3G GSM | 4G LTE
RF Antenna Internal or External External External
Status LED's 3 Tricolor 3 Tricolor 4 Tricolor



DownloadsOrder SampleRequest Quote





Telematics Configuration Tool

CANect ComposerTM

Reduce project development time by using CANect Composer to quickly create your Telematics configuration in 3 simple steps:

  1. Choose device
  2. Configure features & connectivity
  3. Develop interface

Composer® offers administrators features that promote universal CAN protocol capabilities along with common J1939 protocol support such as DM1 messaging and equipment VIN.

  • Define application and services - configure functions including telematics, datalogging, Reflector app, WiFi and more
  • Define data collection - CAN messages, module sensor data and system messaging
  • Determine device parameters - ID/value, rate, unit type, etc.
  • Determine transmission rate & path - WiFi, cellular or ethernet
  • Over the Air Programming (OTAP) - setup packages, interlocks and sequence



Request Software



Featured Products & Services

Telematics Demo Kit

Everything you need to demo or prototype on-vehicle

  • Telematics module (Wifi, Cell & GPS)
  • Antenna, harness & AC Adapter
  • Pre-installed vehicle simulation
  • CANect PortalTM access & service
  • Access data on-site with CANect View™

Composer™ Configurator Tool

Rapidly Develop and Launch Telematics-Ready Equipment

  • Software definition for full system configuration
  • Unique CAN message collection
  • Complete collection and transmission control

Introducing the NEW CL-T27 Telematics Module

Designed for OEM's

  • Built in data logger
  • Linux operating system
  • CAN and Ethernet interface

Telematics Devices & Configuration Tool

CANect® Telematics devices and configuration tools provide a wide array of capabilities including IP67 design that supports the harshest environments, data logging capabilities and the latest on-vehicle communication technology to support IoT for today and into the future. Choose and configure your devices in 3 easy steps.



Need Telematic Services?

View our visulization and billing services for your telematic solution.

Learn More

Get Telematics Application Ideas

Learn what other OEM's are doing to differentiate their offering.

Learn More

Need Engineering Support?

Our engineering teams are readily available to support your project.

Learn More
