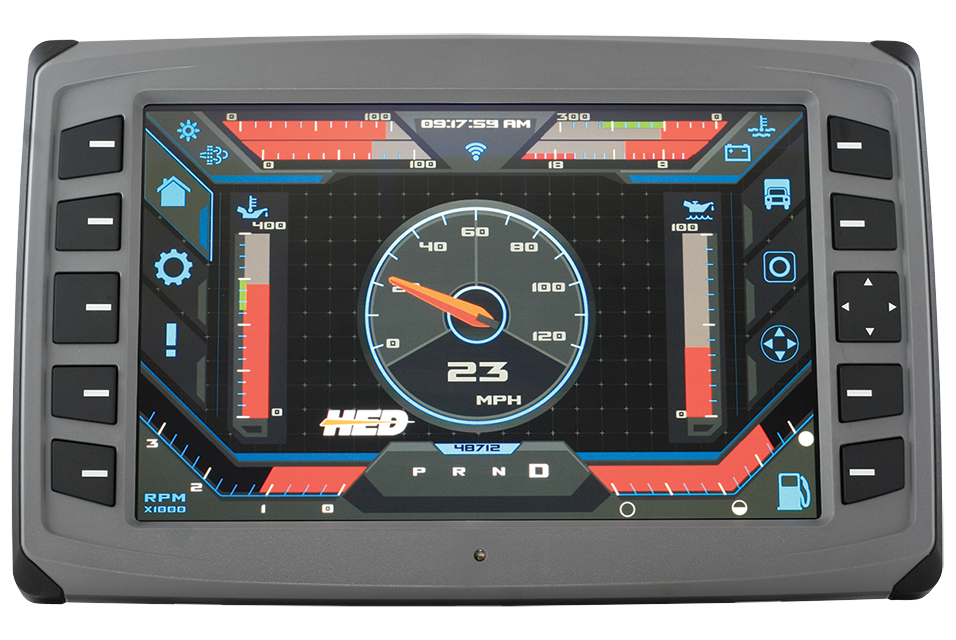

10" Programmable Display | CL-712

Our 10.1" display offers a wide screen format to display more of your gauges and data. Robust enclosure for durability.

Features

  • Programmable - With HED Orchestra software tools
  • Sealed enclosure - External mounting (IP67*)
  • Mounting - Rear (no visible mounting holes) or front mount
  • Sunlight readable -  10.1" TFT color LCD display
  • Pixel format - WVGA 1280x800
  • Backlight - LED with 1000 nit brightness
  • Touch screen - Optional
  • Microprocessor - Cortex A8 ARM running at 800MHz
  • OS - Linux
  • Memory - 8GB FLASH / 512MB RAM
  • Real Time Clock - Internal Battery (15 year life - typical)
  • Video Inputs - 4 (NTSC / PAL)
  • CAN ports - Qty: 2 - available on power-up
  • Ethernet ports -  Qty: 1 - works with CANect™ OTAP
  • Inputs and Outputs – 4 Outputs and up to 11 Inputs

*Available with addition of rubber covers

 Specifications
10" Display Family CL-712-100
Brightness Nits 1000
Touch screen Option Y (Resistive)
Video (NTSC/PAL) 4
Inputs Up to 11
Outputs 4
Orchestra Programmable Yes
Crank Storyboard No
