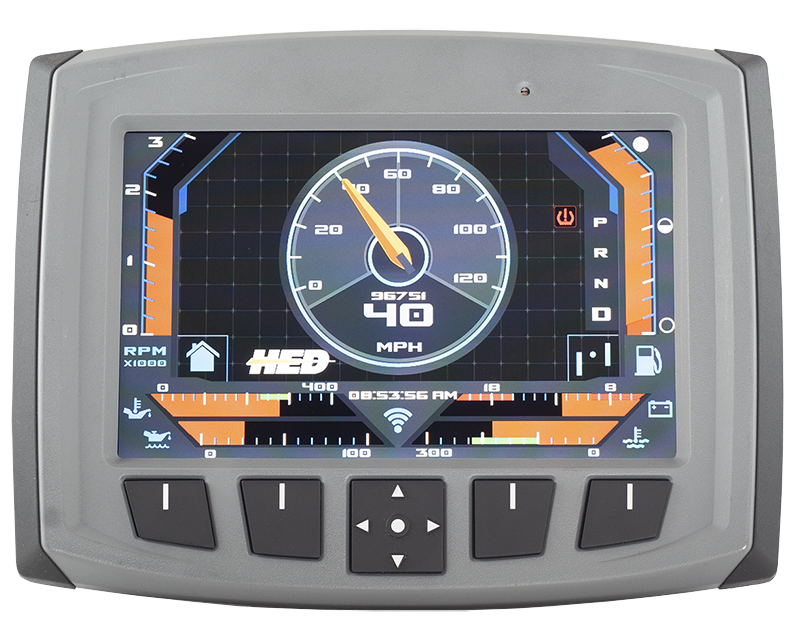

7" Programmable Display | CL-711

Our 7” display is compact, yet powerful. Includes 4 push buttons with center navigation button. Features a rugged and durable encasement for harsh environments. Powerful microprocessor for the size, running at 800MHz.

Features

  • Programmable - With HED Orchestra software tools
  • Sealed enclosure - External mounting (IP67*)
  • Mounting - Rear (no visible mounting holes) or front mount
  • Sunlight readable -  7" TFT color LCD display
  • Pixel format - WVGA 800x480
  • Backlight - LED with up to 1000 nit brightness
  • Touch screen - Optional
  • Microprocessor - Cortex A8 ARM running at 800MHz
  • OS - Linux
  • Memory - 8GB FLASH / 512MB RAM
  • Real Time Clock - Internal Battery (15 year life - typical)
  • Video Inputs - Up to 4 (NTSC / PAL)
  • CAN ports - Qty: 2 - available on power-up
  • Ethernet ports - Qty: 1 - works with CANect™ OTAP
  • USB Host port - Qty: 1 (Allows software updates from memory stick)
  • USB Client port - Qty: 1 (For HED software tool interface)
  • Additional Inputs and Outputs - Optional

*Available with addition of rubber covers

 Specifications
7" Display Family CL-711-106 CL-711-111 CL-711-112
Brightness Nits 1000 500 500
Touchscreen Option Resistive Resistive N
Video (NTSC/PAL) 4 4 2
Inputs Up to 9 Up to 9 0
Outputs 4 4 0
5VDC Sensor Supply 1 1 0
Orchestra Programmable      Yes
Crank Storyboard      No
